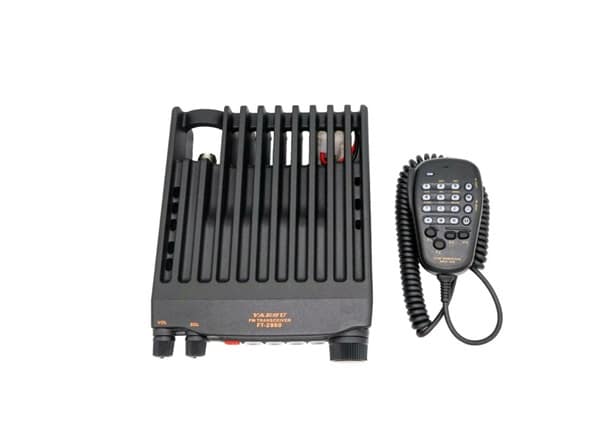

• Yaesu FT-2980R 80W 2M FM Mobile Transceivers

  Building on the success of their FT-2900R, Yaesu FT-2980R 80W 2M FM Mobile Transceivers are ruggedly built 2-meter rigs with up to 80 watts of output power. No fan is required because of Yaesu’s diecast chassis/heat-sink design.

  Four power levels are available: 5, 10, 30 and 80 watts. FT-2980R transceivers are certified to MIL-STD 810. These rugged FT-2980R rigs are very similar to the FT-2900R in features and capabilities, but transmit at higher power. Three watts of receiver audio output ensures that the operator can enjoy quality reception in noisy environments.

  Yaesu FT-2980R features:

  * Heavy heat sink allows a full 80-watt RF power level; no cooling fan needed
  * Four selectable power output levels: 80/30/10/5 watts
  * Transmit coverage 144 to 148 MHz
  * Extended receive from 136 to 174 MHz
  * Dual Watch
  * Three watts of audio output for noisy environments
  * CTCSS and DCS encode/decode
  * Large 6-digit backlit LCD screen
  * Four display-brightness levels
  * Alpha-Numeric channel display
  * Supply Voltage Display
  * 200 memory channels
  * Versatile scanning capability
  * Smart Channel Search
  * NOAA Weather Channels with Severe-Weather alert
  * MH-48A6J DTMF Direct Access Microphone Included
  * Hand mic is backlit for operator convenience
  * Wide/Narrow-Band Selection

  Basic specifications:

  * Receiver circuit type: Double-Conversion Superheterodyne
  * Modulation Type: F3E for FM, F2D for PACKET
  * Maximum output power: 80 W
  * Case Size (W x H x D): 6.3 x 2.0 x 7.3 in. w/o protrusions
  * Weight: 4.2 lbs.

  Included accessories:

  * DTMF microphone: MH-48A6JA
  * Mobile mounting bracket
  * DC power cord w/fuse
  * Spare25A fuse
  * Front elevating foot
  * Owner’s manual
  * Warranty Card

  If you want a GREAT, high-power 2m mobile rig, look no further than one of these Yaesu FT-2980R 80W 2M FM Mobile Transceivers

80 Watts Power Output.

80 Watts of Solid RF Power with No Cooling Fan Needed! Four selectable power output levels are provided: 75/25/10/5 Watts. The power selection may be stored into memory, allowing you to conserve power while using strong local repeaters.

Large LCD Display.

The large 6 digit backlit LCD on the FT-2980R ensure excellent visibility

Loud Audio with Internal Speaker.

The FT-2980R packs 3W BIG watts of Loud Audio with its own Internal Speaker for those noisy environments.

Excellent Receiver Performance.

The FT-2980R’s receiver front end features Yaesu’s renowned Advanced Track Tuning RF input filtering, which affords outstanding protection from Intermodulation distortion.

CTCSS and DCS Encode/Decode Built In.

For easy repeater access, or silent monitoring of busy channels, both CTCSS and DCS (Digital Code Squelch) Encoder/Decoder circuits are built in. CTCSS and DCS configuration data may be stored independently in each memory channel. A “Split Tone” mode also allows operation on systems where CTCSS and DCS are used separately on the repeater uplink/downlink.

Extensive Memory System.

The FT-2980R provides a total of 221 memory channels, including 200 “regular” memories, ten pairs of band-limit memories, and an instant-recall “Home” channel you can dedicate to a frequently-used repeater or simplex frequency. Memories can store repeater shift information, CTCSS/DCS data, power output level, scanning status (“Skip”), and Alpha-Numeric labels.

Alpha-Numeric Channel Display.

Memory channels may be displayed either with the channel frequency or a personalized Alpha-Numeric label, for easy channel recognition. Up to six letters, characters, or numbers may be used for labeling channels.

WIRES Internet Linking Access Feature.

The FT-2980R includes a conveniently-located “Internet” key, for quick access to Internet-linked repeater systems. Internet repeater linking allows you to use your FT-2880R to talk to other Amateurs throughout the world, with outstanding voice signal quality. The “Internet” key may be configured to send either a single DTMF digit, or a DTMF string, for operation on a WIRES™ (Wide-Coverage Internet Repeater Enhancement System) repeater, or on other Internet-linked repeaters using DTMF tone access. For more information on WIRES™, please visit our Web site (www.yaesu.com), or send an e-mail to WIRES@vxstdusa.com .

WX Channels with

A special 10-channel Weather Band memory bank is provided in the U.S. version, allowing quick access to NOAA weather broadcasts. When the 1050-Hz “Severe Weather” alert tone is transmitted, the FT-2980R may be configured to emit an alarm tone to get your attention quickly. With the “Weather Alert” feature enabled, the FT-2980R will scan the ten Weather memories, stopping only if the 1050-Hz tone is received.

MH-48A6J DTMF Direct Access Microphone.

The backlit MH-48A6J microphone allows direct keypad frequency entry, or keypad memory channel recall. On transmit, the MH-48A6J allows manual entry of DTMF tones for autopatch use, and the FT-2980R also includes a nine-memory, 16-digit DTMF Autodialer. Four user-programmable “soft” keys on the microphone may be programmed for easy control of a number of different features, and the [A]/[B]/[C]/[D] keys replicate the functions of the keys on the front panel of the transceiver, for maximum convenience while driving
