Icom’s First IP Advanced Radio System

• License free radio system using a wireless LAN
• IPX7 waterproof (1m depth water for 30 minutes)
• Compact 58 X 95 X 26.4 mm body and 205g (approximate) lightweight
• No license fee or call fee
• Vibration alert function for incoming calls
• Internal antenna (communication range will decrease to half from/to access points)
• Status and Short Data Messaging capabilities (pre-programmed message only)
• WPA-PSK and WPA2-PSK encryptions protects conversation security
• More than 20 hours of operation with supplied BP271
• Interconnect to external networks with the optional VE-PG3
• 2 Year Warranty

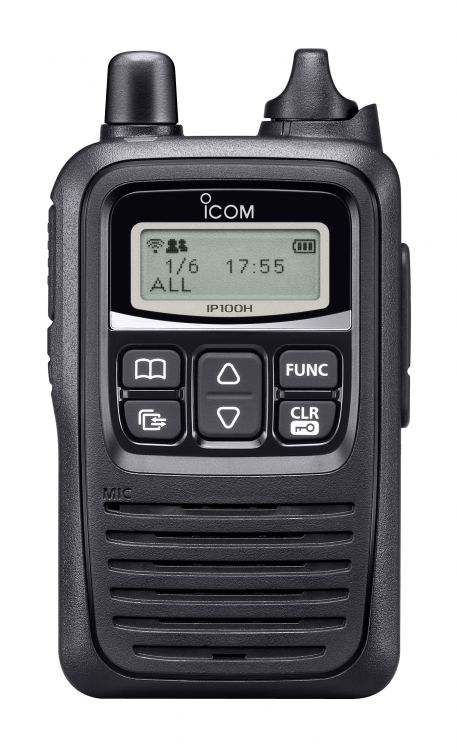

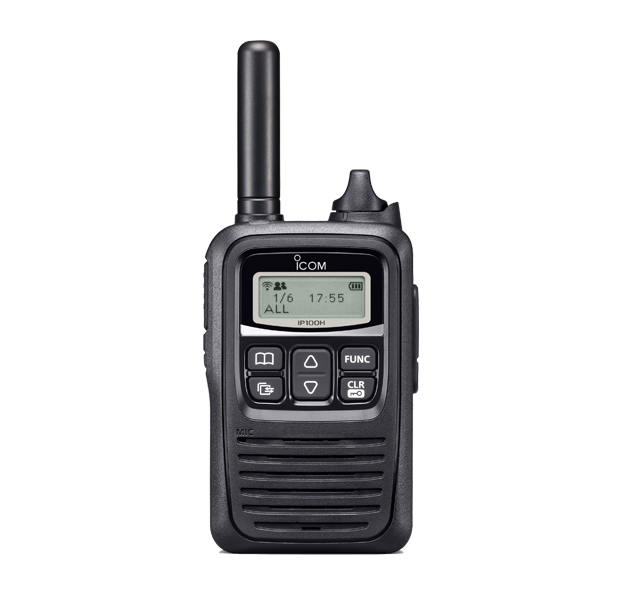

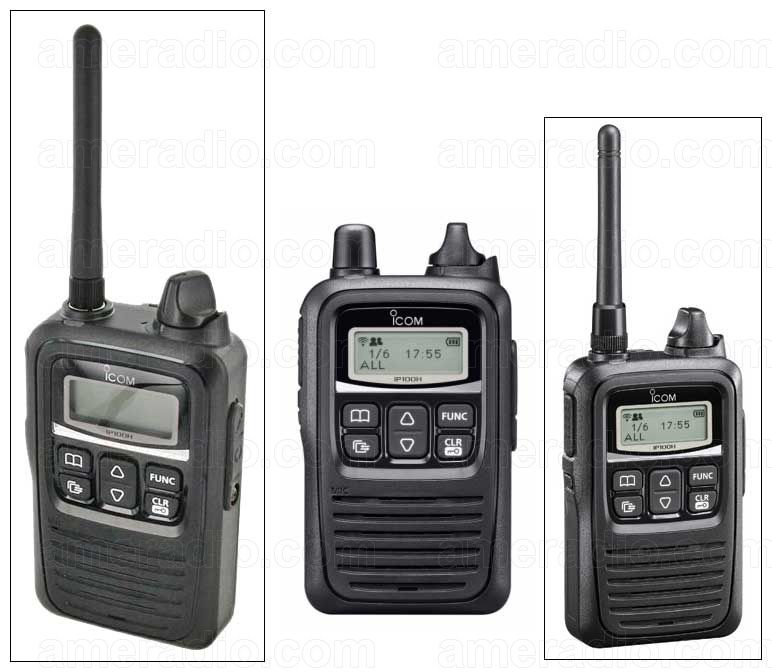

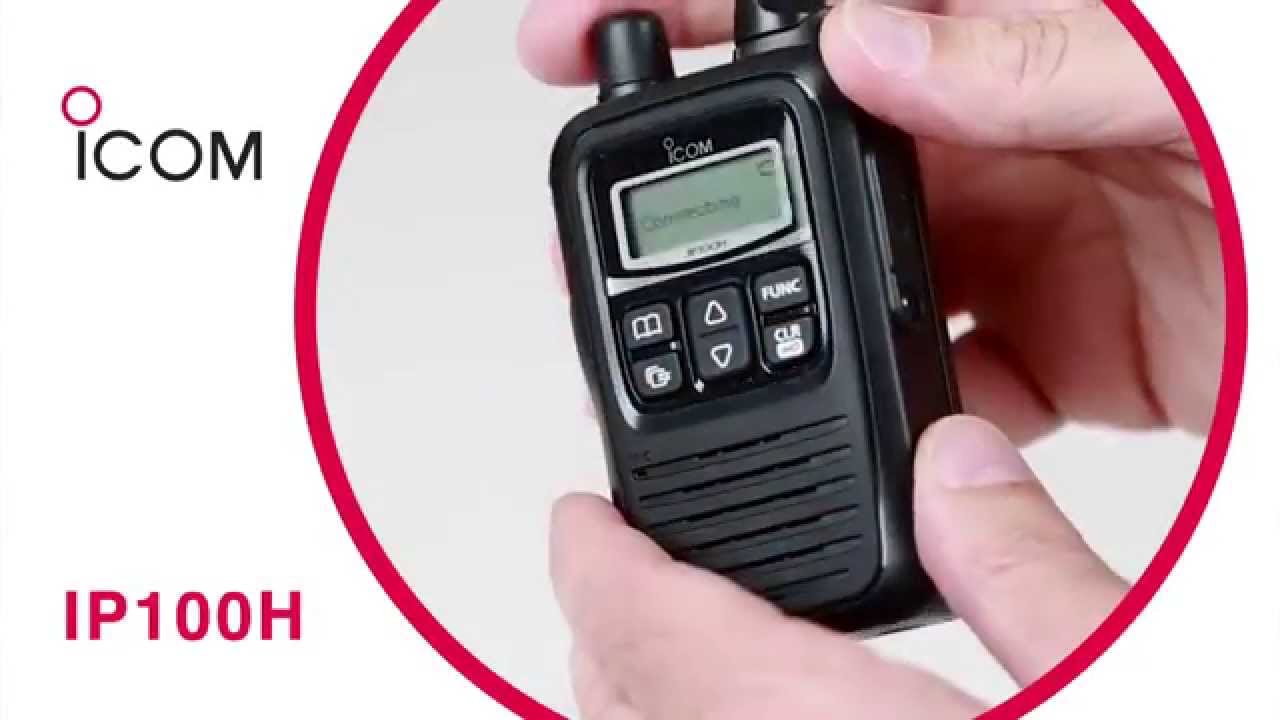

The Icom IP100H is a revolutionary, world-class, commercial-grade, two-way radio system, that utilises WiFi to provide your staff with two-way radio connectivity and coverage.

It is now both affordable and easy to connect all of your staff located over an entire hotel, large retail store, university, or even mining project.

The IP100H system provides all of the benefits of an advanced, digital radio system without any of the limitations associated with traditional radio technology: No more radio “dead spots”, no more expensive repeater systems and antennas installations, no more channel limitations, no more 3rd party radio interference, no more expensive ACMA licence fees, no more ACMA frequency allocation limitations.

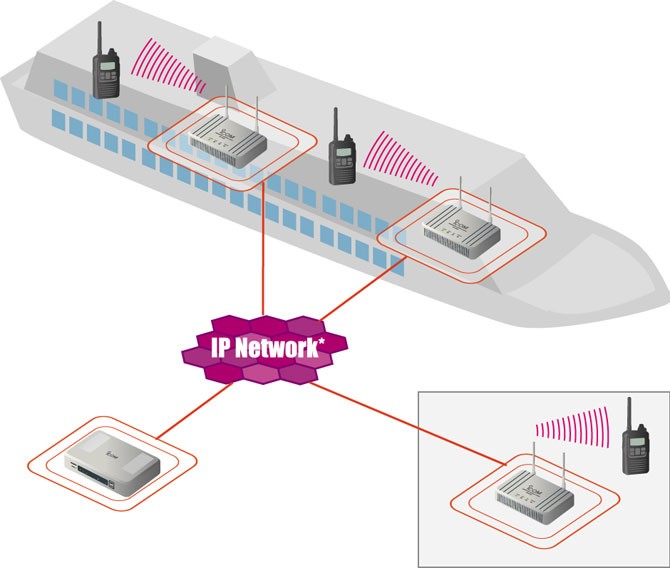

Furthermore, with traditional radio technology, it may cost tens, if not hundreds, of thousands of dollars to fit out an entire multi-story building with sufficient repeaters and antenna system to provide every floor of the building with traditional radio coverage. However, with the IP100H system, your coverage is only limited by your WiFI network which is vastly less expensive to set up. The IP100H system can either utilise your existing WiFI network or alternatively you can provide the IP100H handsets with WiFI coverage via Icom’s own supplied WiFI access point hardware.

Note, the IP100H system does not require internet access. The data exchanged between the IP100H radio devices remains internal to that WiFi network and does not get transmitted over the internet. Therefore, if the internet goes down, it does not impact your IP100H radio connectivity.

If you alternatively need coverage outside of the building or worksite, please consider the integration of the Icom IP501H LTE two-way radio, that uses 4G / 3G to communicate. The IP501H two-way radio can be seamlessly integrated into your IP100H WiFi system, to connect your worksite, to mobile employees based anywhere in Australia.

The IP100H radio is a small, lightweight, and easy-to-use radio which provides a battery life of more than 20 hours. Don’t be fooled by its small, elegant design, the IP100H is an industrial-grade solution, meeting IPx7 waterproof and dustproof ratings. The radios are built to use in a tough industrial mining project, yet stylish enough for use in a retail outlet.

The IP100H system offers a full range of advanced features include: full encryption over the network to provide secure and interference-free communication. You can even send short text messages to other IP100H users.

Need to make a private phone call to another IP100H user? When using the IP100H with an approved audio accessory, you can make full-duplex, telephone phone calls to other IP100H users on the same network.

Want to track the location of a user on your network? When using the IP100FS Remote Communicator, you can locate where all IP100H users are in relation to the WiFi access point they are connected to.

The IP100H is ideal for users that want to create a radio networking solution using their existing WiFi network or in situations in which a traditional radio network will not suit or is too costly to install, the ideal system for a business who already have a WiFi network. The ideal industry applications suiting the Icom IP100H radio system include Hospitality, Hotels, Health Care, Education, Supermarket, and Retail Stores.
