Description

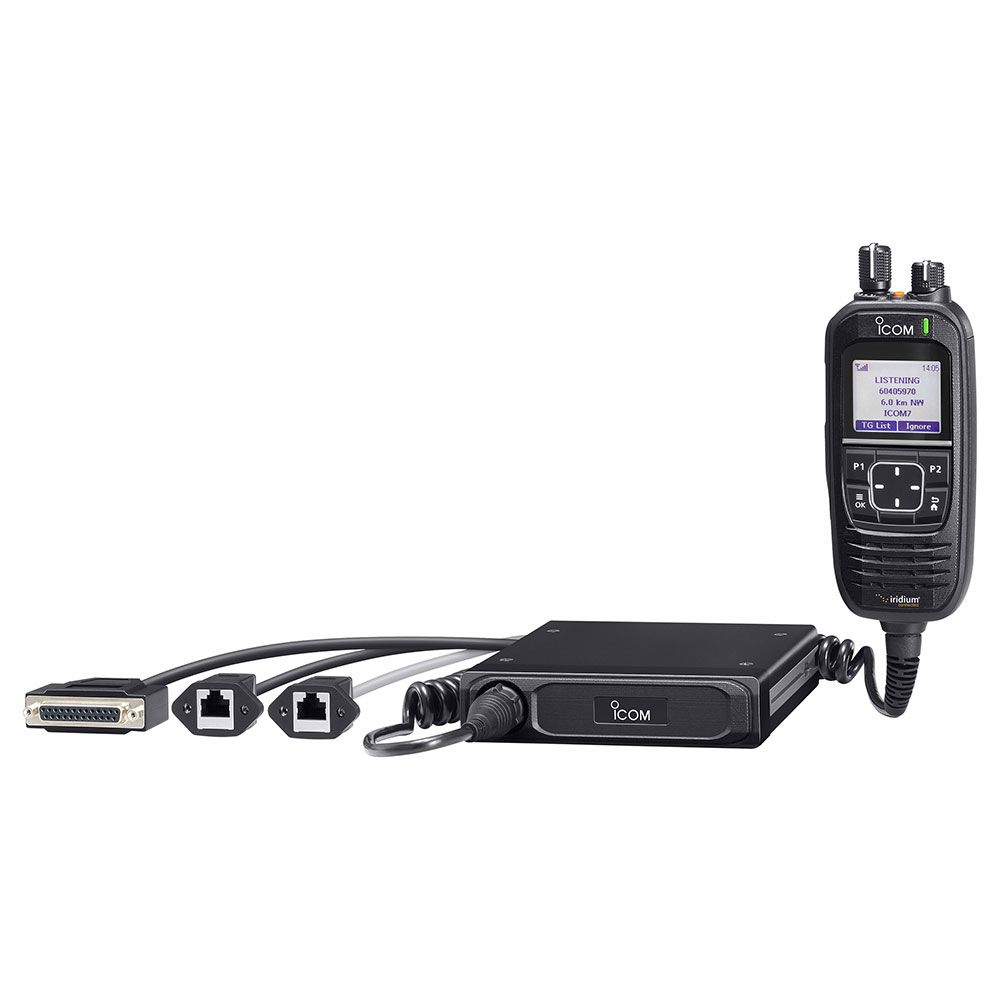

IC-SAT100M Satellite PTT Transceiver For In-Building Or In-Vehicle Use
IC-SAT100M
Designed for in-vehicle and in-building use, the Icom IC-SAT100M Fixed Mount Satellite PTT Radio operates on the Iridium satellite network to provide real-time push-to-talk communications anywhere on the planet. Unlike handheld satellite PTT radios, IC-SAT100M users do not need to stay outside for a clear view of the sky for a stable push-to-talk connection. The IC-SAT100M features a durable housing, large front-ported speaker, powerful 1500 mW audio output for clear communication in noisy environments, an RF unit antenna and built-in Bluetooth capability to support hands-free operation (optional accessory required).

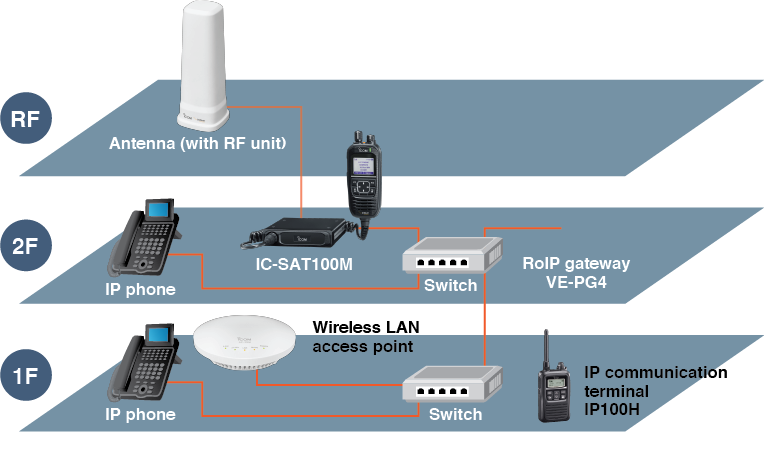

Talkgroups and devices are easily managed via the free Iridium PTT Command Center web application. and with a VE-PG4 RoIP gateway, the IC-SAT100M can interconnect with an IP phone, WLAN, LTE, IDAS digital*, analog transceivers and other communication systems. Please contact us to learn more.
When you choose satellite PTT from elite communications, along with industry-leading products you get a nimble partner with over 30 years of telecom expertise that is fully committed to your organization’s success.
Note: Icom PTT devices require a monthly PTT service plan to transmit over the Iridium satellite network. PTT service plans feature a flat monthly rate that enables unlimited talk between users in the same talkgroup.
Highlights

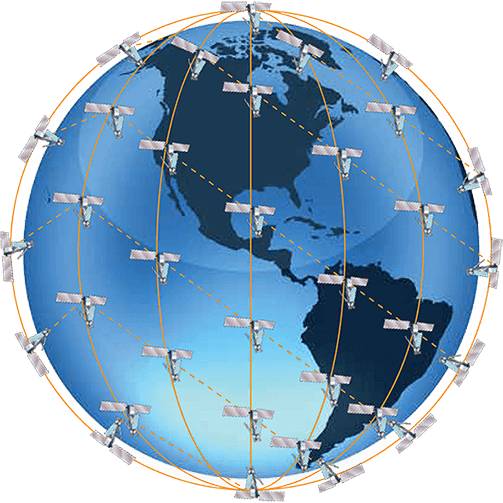

- PTT coverage everywhere on earth via the Iridium satellite network
- Supports one-to-many push-to-talk voice and short talkgroup messaging communication

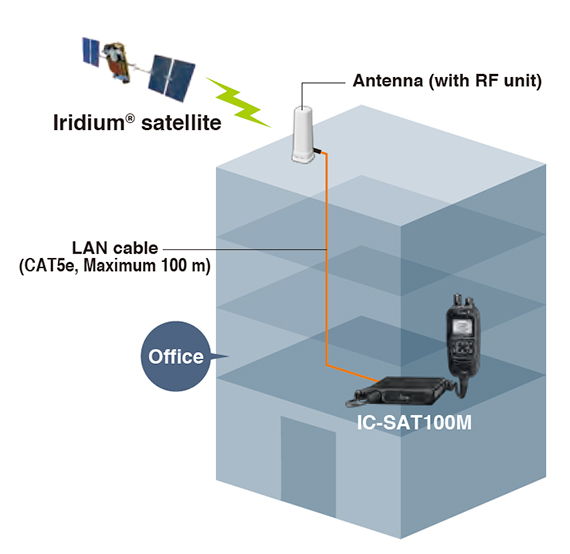

- Easily provides coverage from vehicle to in-building use
- Operating temperature range: -22°F to 140°F (-30°C to 60°C)

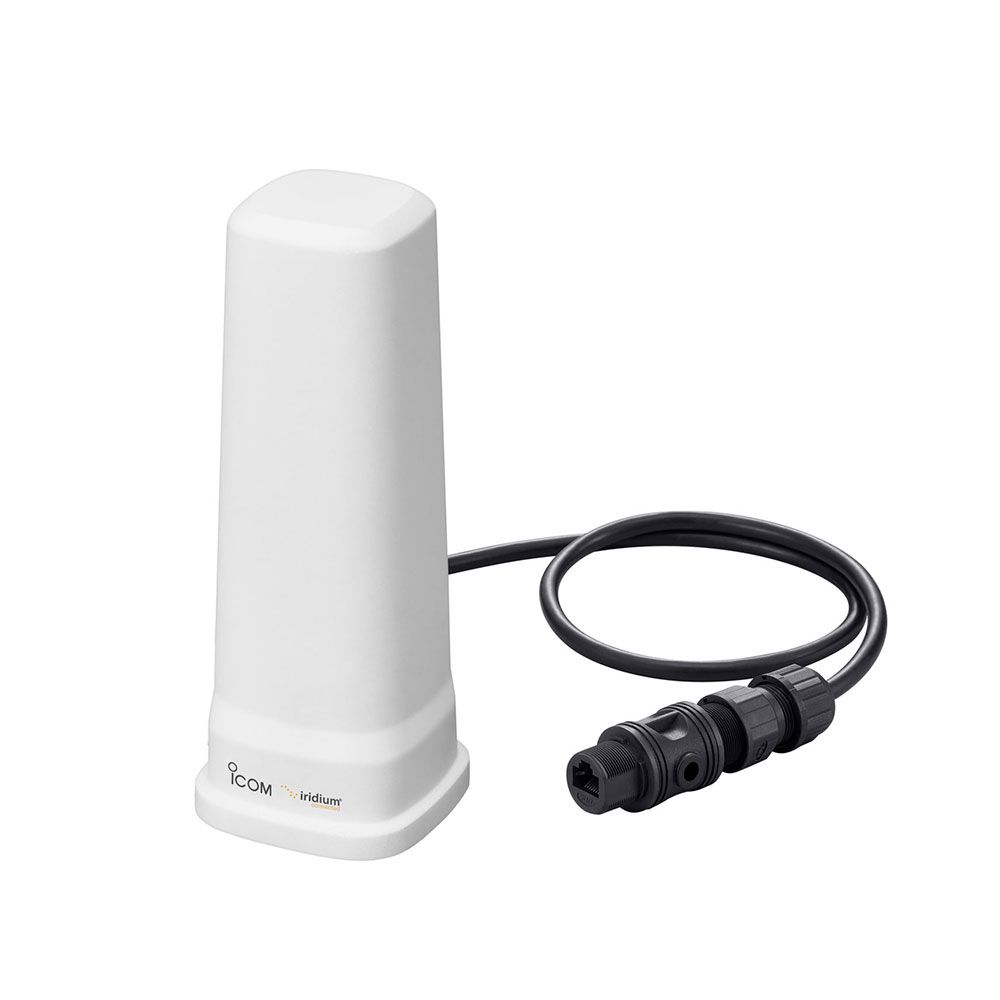

- RF unit antenna with easy wiring between the antenna unit and main unit using a LAN cable
- Loud, clear audio
- Emergency button
- Interoperable with conventional radios using VE-PG4
- One (1) year manufacturer’s warranty
Features and Tech Specs of the IC-SAT100M
Device Features
- Supports Iridium PTT communication and short talkgroup messaging
- Engineered for in-vehicle, in-building applications
- Emergency button; transmits an emergency call to an assigned talkgroup

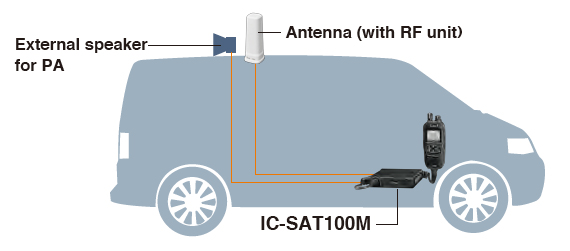

- Low visibility installation for in-vehicle application using optional AH-40 antenna
- 1500 mW audio provides loud and clear communication, even in noisy environments
- MIL-STD 810G
- IP67 (antenna with RF unit), IP55 (mic), IP54 (main unit); dust- and water-resistant
- Integrated GPS receiver shows received signal position information on the display

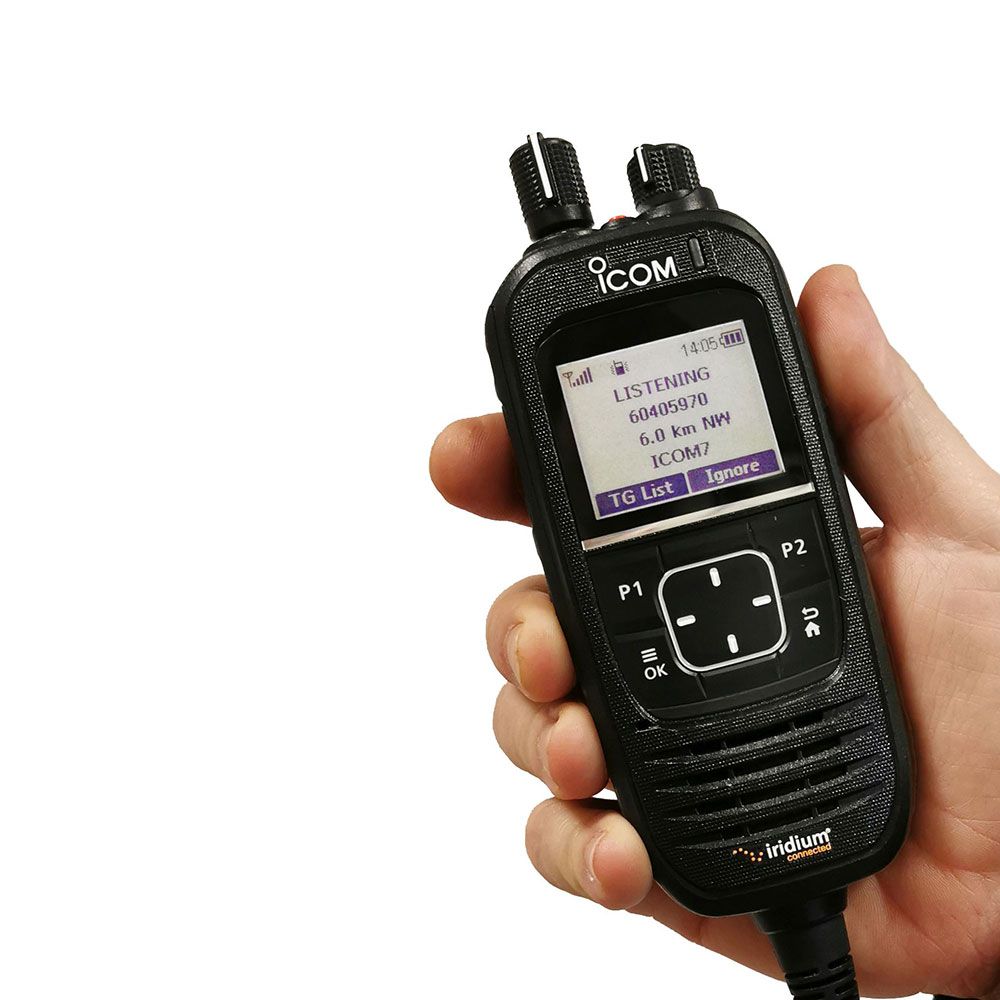

- Supplied multi-functional speaker-microphone
- Interoperability with other devices, including conventional radios using VE-PG4
- LAN cable (CAT5e) accepts up to 100 m (328 ft) cable connection (from the main unit to the antenna with RF unit) without any sensitivity loss, and also the thin cable allows easy wiring work
- Last Call Play function, playback up to 6 latest calls
- AES 256-bit encryption
- Antenna connector: SMA (for external antenna)
- Multiple language display (English, Spanish, French, Japanese, and Chinese)
Specifications
- Main unit dimensions: (L x W x D): 4.9″ x 1.1″ x 6.2″ (125 mm x 29 mm x 156.5 mm)
- Antenna unit dimensions: (L x W x D): 3″ x 7.9″ x 3″ (76.8 mm x 200 mm x 76.8 mm)
- Microphone unit dimensions: (L x W x D): 2.3″ x 5.3″ x 1.2″ (59.5mm x 134.6 mm x 30.1 mm)
- Weight: 1.1 oz (500 g); Main unit: 2.1 oz (950 g); Microphone: 0.55 oz (250 g)
- MIL-STD 810G (also meets MIL-STD 810-C, -D, -E, -F)
- Operating temperature: -22°F to 140°F (-30°C to 60°C)
