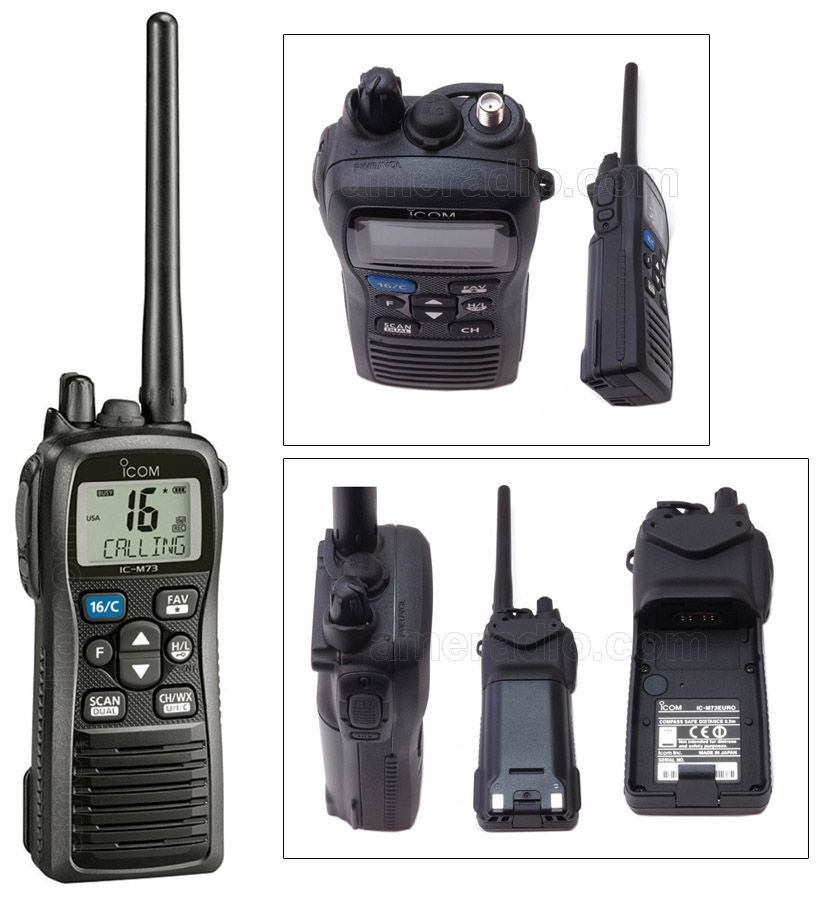

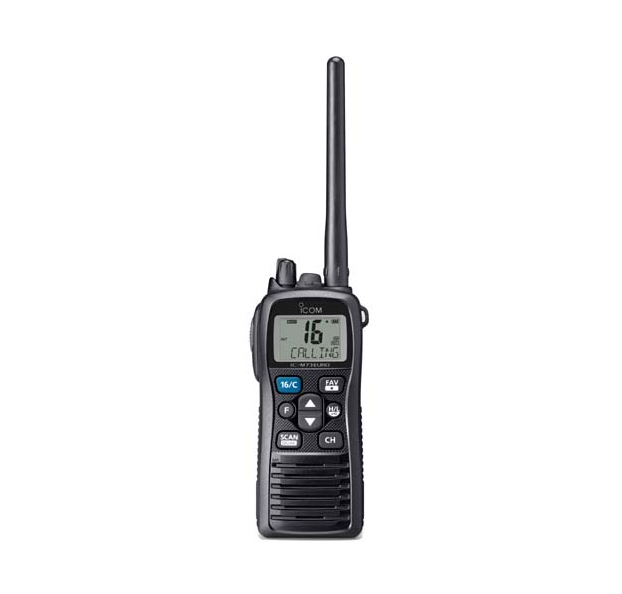

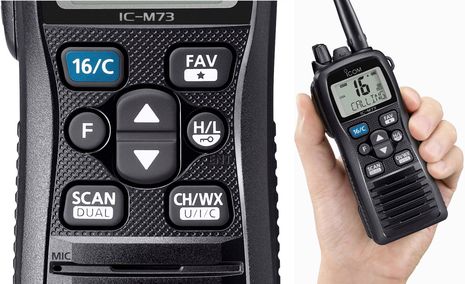

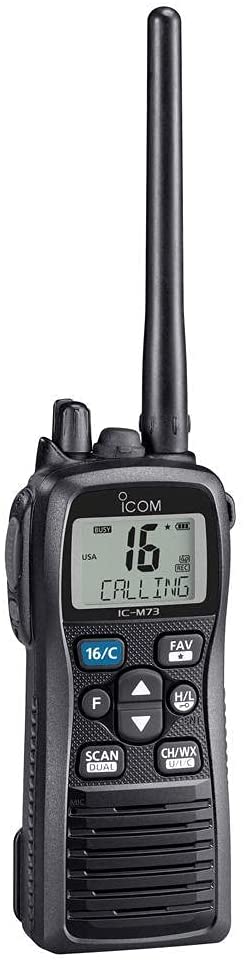

ICOM IC-M73EURO

The IC-M73EURO is designed for demanding situations, or for users who require professional features and construction above all else.

The IC-M73EURO, which supersedes the IC-M72, offers the same rugged construction and performance as its predecessor, while adding new features designed to enhance communications

Features

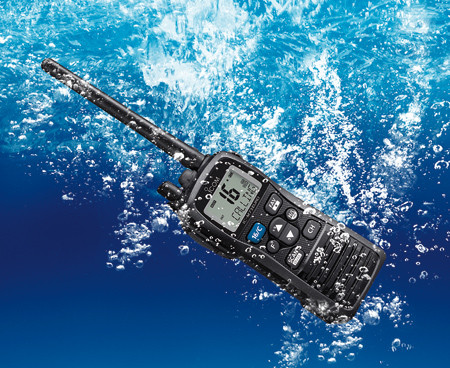

• Waterproof construction (IPX8)
• Last Call Voice Recording
• 5.0, 3.0 & 1.0 Watt Output power (2-step power saver)
• High capacity lithium ion battery (2000mAh) (15-16 hrs+*) *Duty cycle: 5:5:90
• 700mW Loud Audio & Bass Boost Function
• Active Noise Cancelling Technology
• AquaQuake Water draining feature
• Auto scan function
• Multiple Scan modes (Dual/Tri-watch)
• 55 Marine channels with Alpha-Tagging
• 70 Private channels available
• Optional Rugged Waterproof speaker mic (HM202)

Additional Features

• AquaQuake™ water draining function
• Dual/Tri-Watch function for monitoring
• Channel 16 and/or call channel
• 4 level battery indicator
• Favorite channel and tag scan functions
• Optional waterproof speaker-micro-
  phones, HM-167 and HM-202
• Rapid charger BC-210 supplied
• Auto power save function

Physical & Performance

General

• Frequency Usable channel groups: INT, USA, wx channels: Tx: 156.025-157.425MHz / Rx: 156.300-162.025MHz
• Type of emission: 16K0G3E (FM)
• Current drain (at 7.4V DC) Operating temp. range: -10° to +55°C / Tx 5W output: 1.4A / Rx Max. audio (int SP/Ext SP) 450mA/250mA
• Antenna impedance: 50Ù (SMA)
• Dimensions: (W)52.5x(H)125 x 30mm
• Weight: (approx): 320g

Transmitter

• Output power: (Hi/Mid/Low) 5W/3W/1W
• Max. frequency deviation: ±5.0kHz
• Frequency stability: ±10ppm
• Spurious emissions: 0.25ìW
• Adjacent channel power: 70dB
• Audio harmonic distortion: Less than 10% (at 60% dev.)
• Residual modulation: 40dB

Receiver

• Sensitivity (at 20dB SINAD): –5dBì emf typ.
• Squelch sensitivity: –6dBì emf typ. (at threshold)
• Adjacent channel selectivity: 65dB
• Spurious response: 65dB
• Intermodulation: 65dB
• Hum and noise: 40dB
• Audio output power 700W typ. (Internal SP@1kHz) (at 10% distortion, 8Ù load) 200mW (External SP)

Supplied accessories

• AC adapter
• BC-123SV
• Rapid charger, BC-210
• Battery pack, BP-245N
• Belt clip, MB-103
• Antenna, FA-S64V
• Hand strap
