Description
IC-F6400D 45W UHF Mobile Transceiver (Digital)
IC-F6400D UHF – Digital, Bluetooth, Waterproof, Encryption
- 1024 Channels, 128 Zones
- 5 or 7 Programmable Keys
- High-Resolution Color Display
- Built-in Bluetooth
- IDAS™ Trunking Capable (optional)
- Digital or Analog Channels
- 50W VHF, 45W UHF
- 136-174MHz, 380-470MHz, or 450-512MHz
- Digital Voice Recording
- DES Encrytion Built-in (4-key), with optional 64-key DES, or AES
- PC programmable
- GPS Built-in
- LTR Built-in
- Supports Icom’s Digital Advanced System – IDAS™
Icom F6400D UHF At-A-Glance

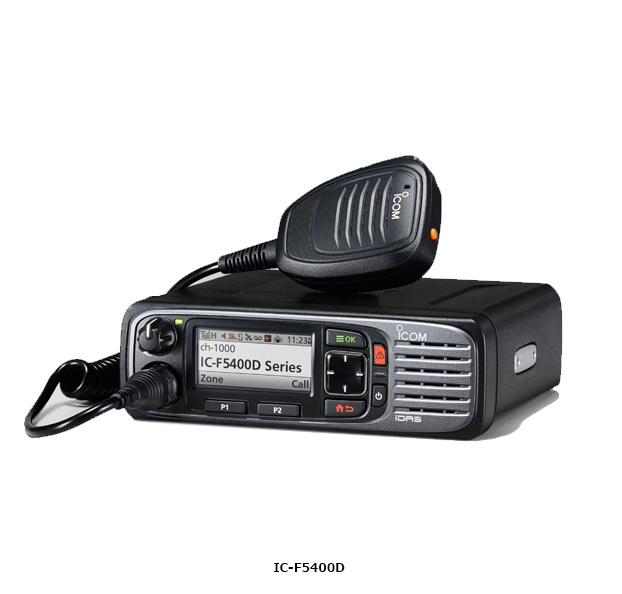

The F5400D series radio is Icom’s new flagship IDAS product. Dozens of new features and functions are included. Features like SD Card, USB interface and Bluetooth appear for the first time in this land mobile product. A brilliant color display allows for easy observation of critical information, in the dimmest of light to the brightest of sunshine. Icom is the choice when you want to take your communications to the next level.
The Icom F5400D | F6400D radio can record incoming and outgoing communications, and replay recorded communications. When a 32 GB microSD card is used, a Max. 500 hours recording is possible.
The F5400D/F6400D allows the user to configure the radio three ways to suit almost any application or installation requirement. The intercom function is available between controllers and/or COMMANDMIC. The new COMMANDMIC is an identical physical layout and user interface as the F3400D handheld radio. By installing in into a vehicle it allows a secondary remote control of the F5400D.
Icom F5400D | F6400D GPS Receiver
GPS position data can be sent with voice call or status call and can be used with an AVL (Automatic Vehicle Location) system. The GPS logs user position data at regular intervals and can be saved to a microSD card. Optional GPS antenna UX-241 is required for the GPS on mobile radios.
Icom F5400D | F6400D Trunking
The F5400D | F6400D series can be upgraded to NXDN™ Type-C trunking, or Type-D single -site or multi-site trunking operation. Contacts us for more information on this feature. It is also compatible with IDAS conventional and multi-site conventional.
Icom F5400D | F6400D Built-in DES Encryption – Optional AES
If secure communication is an issue the F5400D | F6400D has the highest levels of encryption. For digital communication security, the new IDAS radios provide basic 4-key DES encryption as standard. When used with the optional UT-134 encryption unit, 256-bit AES encryption and the OTAR (Over-the-Air Rekeying) function are available. For efficiency in managing your radio fleet, the OTAP (Over-the-Air-Programming) function allows remote change of programmed settings over the radio channel. The OAA (Over-the-Air-Alias) function sends user name over the radio channel and eliminates needs to program the alias table.
What’s in the box:
1 F5400D or F6400D Radio (choose; VHF or UHF)
1 Mounting Hardware
1 Owner’s Manual
GENERAL FEATURES |
|
FCC Approval | Part 90 (Business License) |
Frequency Band(s) | VHF (F5400D) & UHF (F6400D) |
# of Channels & Zones | 1024 channels, 128 zones |
Output Power | 50W VHF, 45W UHF |
Weight (with battery) | |
Display | Yes, either Numeric or High-Resolution Color Display |
# of Programmable Keys | 5 or 7 |
Full 16-Key Keypad | No |
IP Rating (Water & Dust) | IP68 |
Receiving Audio Output | Active Noise Canceling |
Digital | Yes |
Trunking Capable | Yes |
Voice Scrambler | Encryption | Yes, DES or optional AES |
Other | Built-in Bluetooth, GPS, & LTR |
Downloads:
- Brochure
- Accessories
- Instruction Manual
