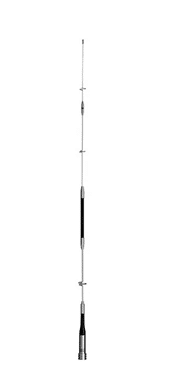

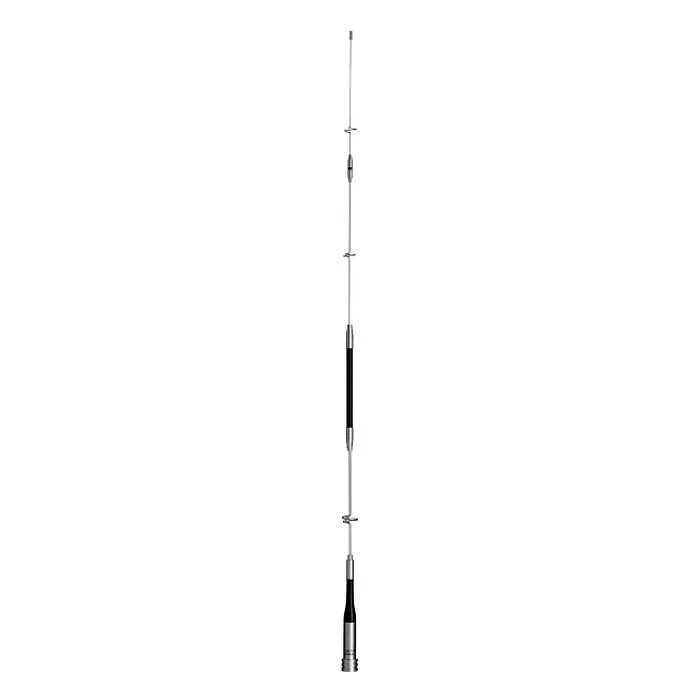

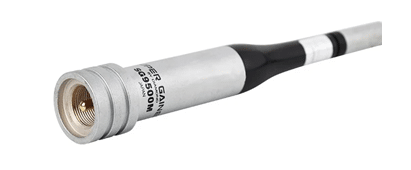

Diamond SG9500N Multi Band Antenna Frequency: 1144/430/1200MHz (2m/70cm/23cm)
Diamond SG9500N Multi Band Antenna Frequency: 1144/430/1200MHz (2m/70cm/23cm) - Image 2
Diamond SG9500N Multi Band Antenna Frequency: 1144/430/1200MHz (2m/70cm/23cm) - Image 3
Diamond SG9500N Multi Band Antenna Frequency: 1144/430/1200MHz (2m/70cm/23cm) - Image 4
Diamond SG9500N Multi Band Antenna Frequency: 1144/430/1200MHz (2m/70cm/23cm) - Image 5

Diamond SG9500N Multi Band Antenna Frequency: 1144/430/1200MHz (2m/70cm/23cm)

Diamond SG9500N Multi Band Antenna Frequency: 1144/430/1200MHz (2m/70cm/23cm) $179.00

From $28.49 a fortnight with

6 fortnightly payments of $23.87 (total payable $203.00) more info



Available on backorder

Category:

Description

Diamond SG9500M Multi Band Antenna Frequency: 144/430/1200MHz (2m/70cm/23cm)



  • 144/430/1200MHz (2m/70cm/23cm)
  • Gain: 3.15dB (144MHz), 6.3dB (430MHz), 9.7dB (1200MHz)
  • Max. power rating: 100W (144/430MHz), 50W (1200MHz),100W (total)
  • Impedance: 50ohms
  • VSWR: Less than 1.5:1
  • Length: 1.00m
  • Weight: 320g
  • Connector: N Plug
  • Antenna Design: 1/2 wave C-Load radialless(144MHz), 2 x 5/8wave C-Load radialless (430MHz), 5 x 5/8 C-Load radialless (1200MHz).











Order yours from Elite Communications And Electronics today.
