Diamond MX-62N 1.6-56MHz and 76-470MHz (76 to 120MHz for receiving only) $179.00

From $28.49 a fortnight with

6 fortnightly payments of $23.87 (total payable $203.00) more info



Available on backorder

Category:

Description

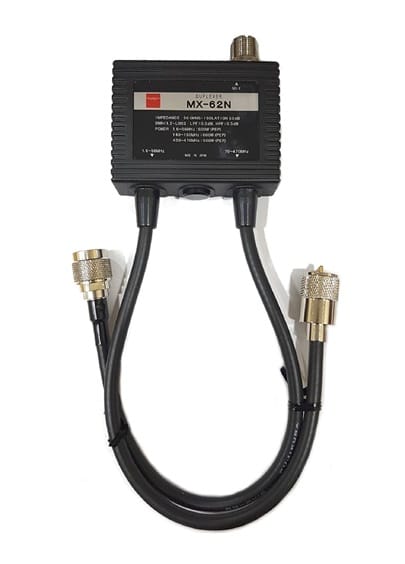

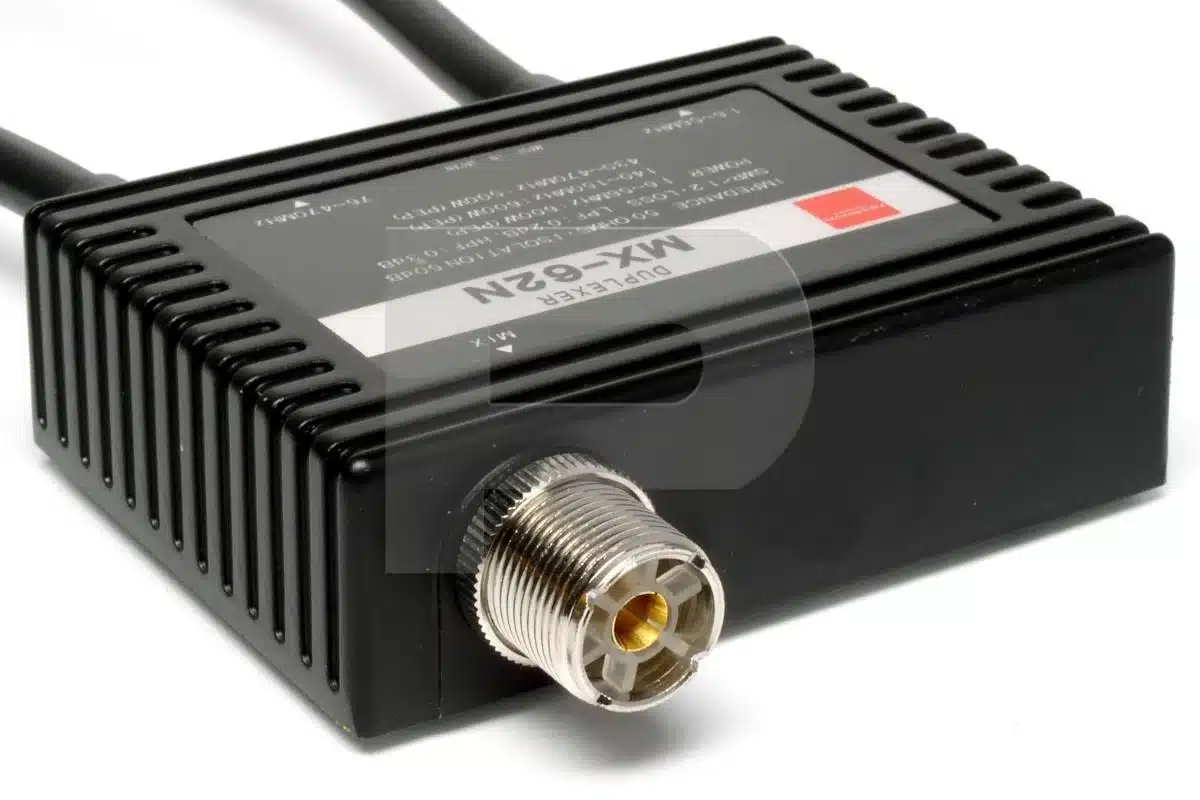

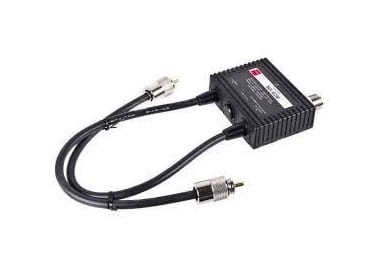

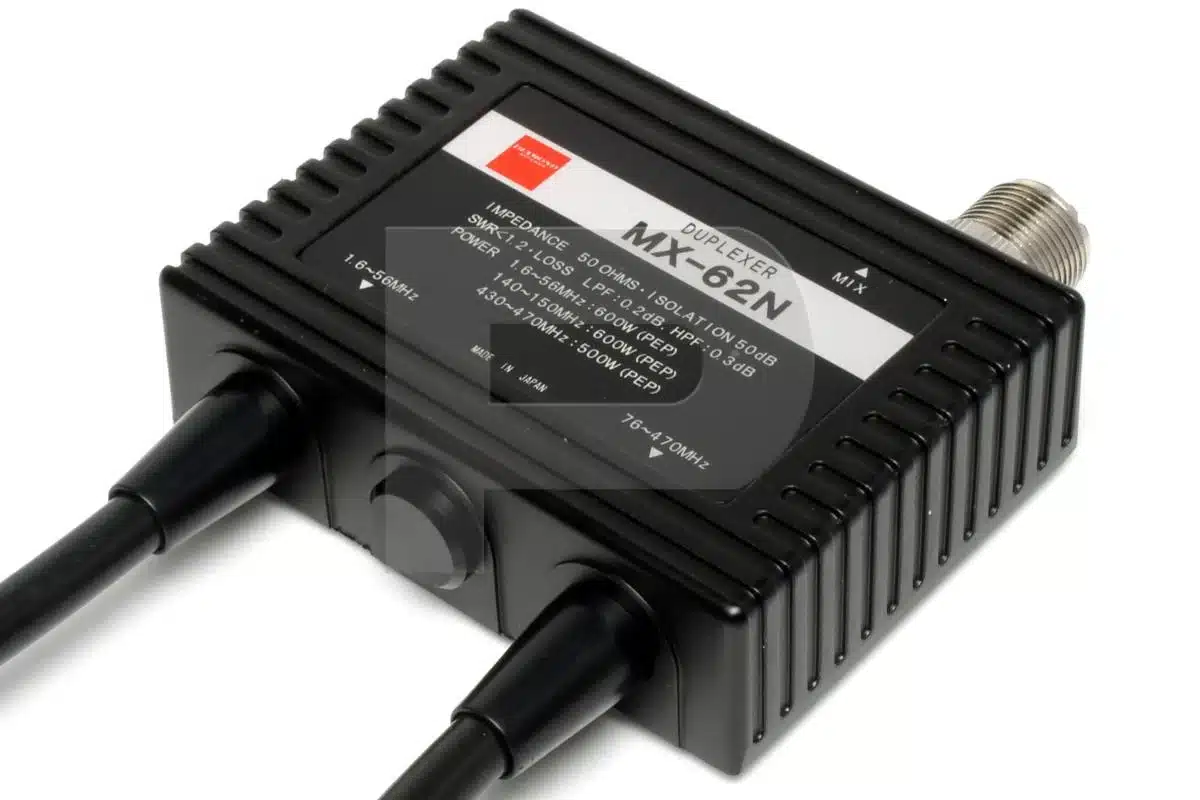

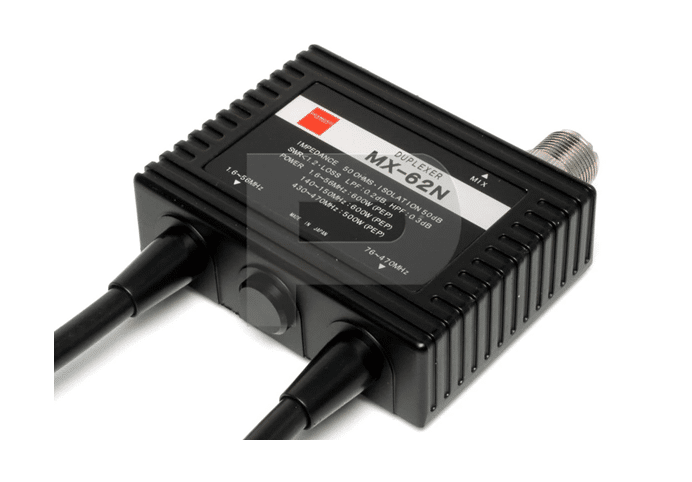

Diamond MX-62N 1.6-56MHz and 76-470MHz (76 to 120MHz for receiving only)

  • Dimensions:86Wx25Hx64Dmm
  • Weight:360g
  • Pass Band Frequency: LPF: 1.6-56MHz / HPF: 76-470MHz(76 to 120MHz receiving only)
  • Power: 1.6-56MHz 600W (PEP)
  • 140-150MHz 600W(PEP)
  • 430-470MHz 600W (PEP)
  • Insertion loss:1.6-56 MHz Less than 0.2dB
    140-150MHz Less than 0.3dB
  • Impedance:50 ohms
  • VSWR:Less than 1.2
  • Isolation: More than 50dB
  • Connector:Mix: SO-239
    1.6-56MHz: PL259, 76-470MHz: N-P
  • Coaxial cable:5D-2V 35cm



Order yours today from Elite Communications And Electronics
