Description

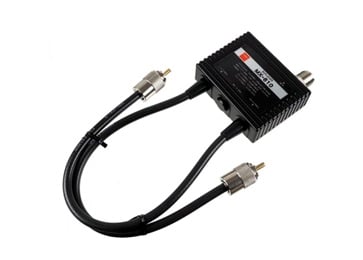

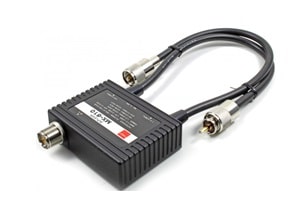

Diamond MX-610M Duplexer HF/144/430 Mhz
- Dimensions: 86W x 25H x 64Dmm
- Weight: 300g
- Passband width: LPF 1.3 to 30MHz, HPF 49 to 470MHz (76 to 120MHz receiving only)
- Power rating: 1.3 to 30MHz 600W (PEP), 49 to 250MHz 600W (PEP), 300 to 470MHz 500W (PEP)
- Insertion loss: LPF Less than 0.2dB (1.3 to 30MHz), HPF Less than 0.25dB (49 to 470MHz)
- Isolation: More than 45dB
- Impedance: 50ohms
VSWR: Less than 1.2:1 - Connector: (Output Mix) M-J (SO-239 Female) (1.3 to 30MHz) M-P (PL-259), (49 to 470MHz) M-P (PL-259)
- Coaxial cable: 5D-2VS (35cm)
Order yours today from Elite Communications And Electronics
