Diamond Antenna A430S10 Base Station Yagi Beam Antenna (430-440 MHz)

Brand:

Diamond Antenna

Manufacturer’s Part Number:

A430S10

Part Type:

VHF/UHF Beam Antennas

Product Line:

Diamond Antenna A430S10 Base Station Yagi Beam Antennas

VHF/UHF Beam Antenna Type:

Yagi

VHF/UHF Beam Antenna Elements:

Antenna Power Rating:

100 W

Beam Antenna Boom Length:

3.90 ft.

Beam Antenna Maximum Boom Diameter:

0.875 in.

VHF/UHF Beam Antenna Longest Element:

14.600 in.

Beam Antenna Turning Radius:

4.00 ft.

Mast Mounting Clamp Minimum:

1.250 in.

Mast Mounting Clamp Maximum:

1.500 in.

Beam Antenna Frequency Coverage:

430-440 MHz

Feedpoint Impedance:

50 ohm

Feedpoint Match Type:

Phased driven element divider

Antenna Feedline Connection Type:

UHF female, SO-239

Antenna Weight:

1.43 lbs.

Quantity:

Sold individually.

Notes:

Antenna must be mounted away from metal mast. Max wind resistance: 80 mph.

VHF/UHF Beam Antenna Bands:

70 centimeters

VHF/UHF Beam Antenna Elements (application):

Beam Antenna Gain:

13.1 dBi

Beam Antenna F/B (dB):

15.0 dB

E-Plane 3 dB Beamwidth:

50 degrees

Typical Beam Polarization:

Horizontal (SSB CW)

Beam Antenna Boom Wavelength:

1.7

Diamond Antenna A430S10 Base Station Yagi Beam Antennas

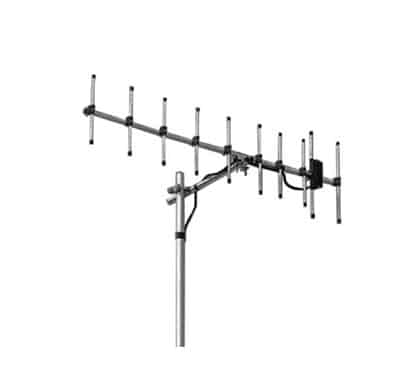

Diamond Antenna A430S10 base station Yagi beam antennas feature great performance from a lightweight, easy-to-install, 10-element design. These high-gain 70cm Yagi antennas are great for base or portable use and, with their factory adjustment, eliminate the need for tuning. Shown with optional Yagi Support bracket, not included.

Order yours from Elite Communications And Electronics today.
