Description

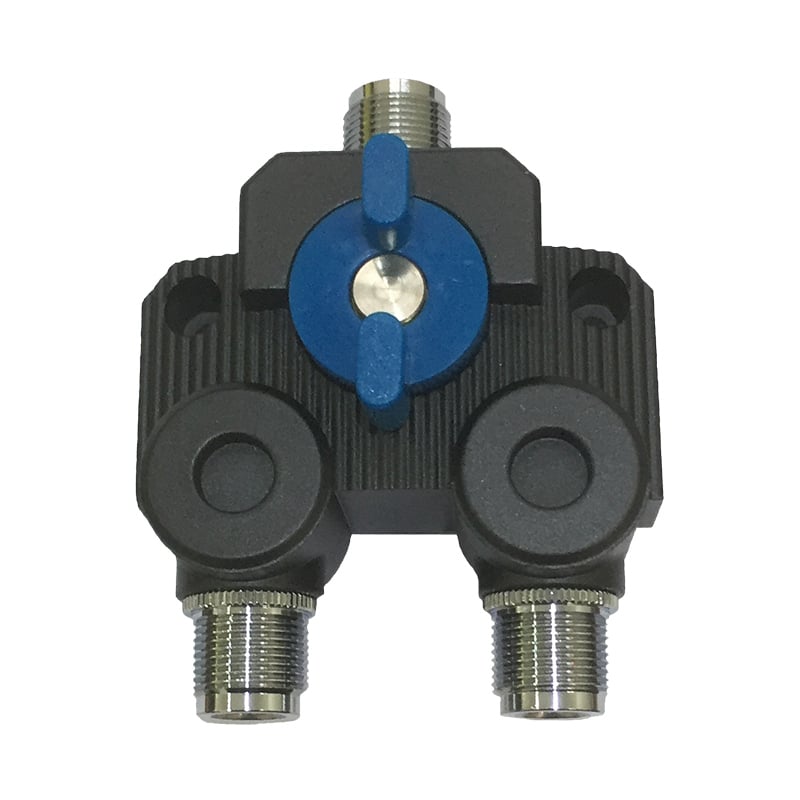

Benelec 1738101B – Benelec RF Manual Switch 1 x Input , 2 x Output UHF sockets DC to 600MHz
2way, UHF Socket Coaxial Antenna Switch DC-1GHz
The 1738101B is a 2 way coaxial switch utilising UHF SO-239 connectors.
Specifications
Frequency Range DC-1GHz
Power Range
DC-30MHz 2KW
30MHz-200MHz 1KW
200MHz-500MHz 500W
500MHz-1GHz 250W
Insertion Loss
DC-500MHz ≤0.05dB
500MHz-1GHz ≤0.10dB
Output Port 1-2 Isolation
DC-500MHz ≥60.0dB
500MHz-1GHz ≥50.0dB
VSWR
DC-500MHz ≤1.15dB
500MHz-1GHz ≤1.25dB
