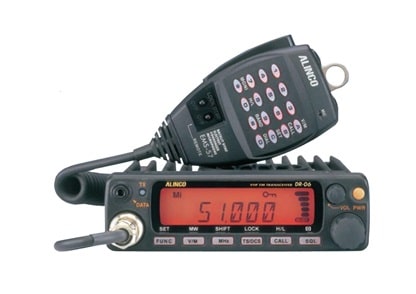

Alinco DR-06TA 6 Meter FM Mobile Transceiver

Alinco DR-06TA 6 Meter FM Mobile Transceivers

Alinco DR-06TA 6-Meter FM Mobile Transceivers are capable, compact 6-Meter, 50 watt FM rigs. With the DR-06TA you will discover excitement working worldwide “Magic Band” communications!

Working DX is possible over thousands of miles when taking advantage of unique propagation such as Sporadic-E, F2 reflection and meteor scatter, just to name a few. Of course even without favorable propagation conditions, 6 meter repeaters will keep you communicating with friends as well.

When the Magic Band opens, the world is within your reach with just a few watts. Be part of the fun! These compact, affordable, easy-to-use mono-band rigs will make your QSOs more enjoyable at home or on the road, so take a closer look at 6m FM and Alinco!

Features of Alinco DR-06TA 6-Meter FM Mobiles:

* 100 alpha-numeric memory channels
* CTCSS, DCS encode plus decode, DTMF encode and Tone-burst are all standard
* Ten autodial memories
* Clean, clear Alinco audio
* Super-wide 7 character alphanumeric display
* Wide and narrow FM modes
* Theft alarm feature
* A large, palm-fitting commercial-grade backlit microphone with a metal connector (not a modular plug) as well as direct frequency input and direct multi-function access such as monitor, call channel, power setting, memory to VFO plus more!
* Stays in mode you select (even voice/packet) through power-off cycles
* Revised NEW manufacturing to be compliant to RoHS/lead-free order in the EU.

Specifications:

* Frequency range: TX: 50 to 53.995 MHz RX: 40 to 69.995 MHz
* Operating modes: FM=16K0F3E
* Channel steps: 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 kHz
* Memory: 100 channels plus 1 quick recall
* Antenna impedance: 50-ohm unbalanced (SO-239)
* Frequency stability: Plus/minus 7 ppm
* Power supply: 13.8V Nominal, 11.7 to 15.8 volts
* Current drain: TX High 11.0 amps, RX 0.6 amps maximum
* Usable temperature range 14 degrees F to 140 F (-10 degrees C to 60 degrees C)
* Dimensions (WHD, w/out projections): 5.59 in. x 1.57 in. x 6.85 in. (142 mm x 40 mm x 174 mm)
* Weight: 35.3 oz. (approx. 1 kg)
* CTCSS tone encoder/decoder: 39 tones
* Digital Coded Squelch encoder/decoder: 104 codes

Transmitter:

* Output power: Approximately 50W (HI) 20W (MID) Approx. 5W (LOW)
* Modulation system: Variable reactance frequency modulation
* Spurious emission: Less than -60 dB
* Maximum frequency deviation: (FM) plus/minus 5 kHz / (NFM) plus/minus 2.5 kHz

Receiver:
* Receive system Double-conversion Super-heterodyne
* Sensitivity (-12dB SINAD) Less than -12.0dBu
* Intermediate frequency 1st IF 10.7 MHz, 2nd IF 450 kHz
* Selectivity: (FM) -6dB plus/minus 12 kHz or more, -60dB plus/minus 28 kHz or less, (NFM) -6dB plus/minus 6 kHz or more, -60dB: plus/minus 16 kHz or less
* Audio output power More than 2 W (8-ohms at 10 percent THD)

Note: For additional information, please look at the files under the “Documentation” tab.

Included accessories:

* Instruction manual
* EMS-57 DTMF Microphone
* Mounting Bracket w/screw kit
* DC Power Cable (ADUA38)
* Mobile microphone holder
* Alarm Cable

Optional Accessories:

* Microphones EMS-53 non-keypad microphone
* ADUA38 – Spare DC Power Cable
* ADFM78 – Spare Mounting Bracket
* DM330MVT – DC Power Supply, 120 VAC In, 13.8 VDC Out at 30A, switching
* EJ-41U internal TNC board is available as an option for 1200/9600bps packet; no need to remove mic for packet operation

Operating 6-meter mobile can be a great way to pass travel time. After all, it’s the Magic Band! Whether it’s FM Sporadic-E DX or local repeaters, one of these Alinco DR-06TA 6-Meter FM Mobile Transceivers,

Order yours today from Elite Communications And Electronics
